Product Description:

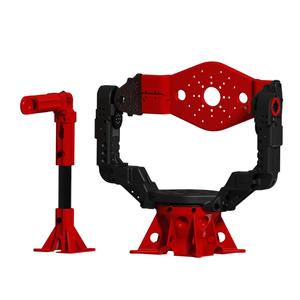

MilliBox GIM04H-380 Modular horizontal/vertical antenna positioner for mmWave and sub-THz antenna and radar testing with software controller in Python. Different models for different DUT width up to 38cm/15.
SPECIFICATIONS:
\n¿ Max DUT Width: 380mm /15¿
\n¿ Max DUT Weight: 3kg
\n¿ Azimuth Resolution: 0.0003¿
\n¿ Elevation Resolution: 0.088¿
\n¿ Azimuth - Elevation Range: -180¿/+180¿
\n¿ DUT Depth 124mm / 5¿and 66mm/ 2.6¿
\n¿ Measurement Height: 386mm / 15.2¿
\n¿ Fits In MBX3x Only
\n
\nFor 3rd axis polarization controller X-Pol option look for GIM04H-380X
|
